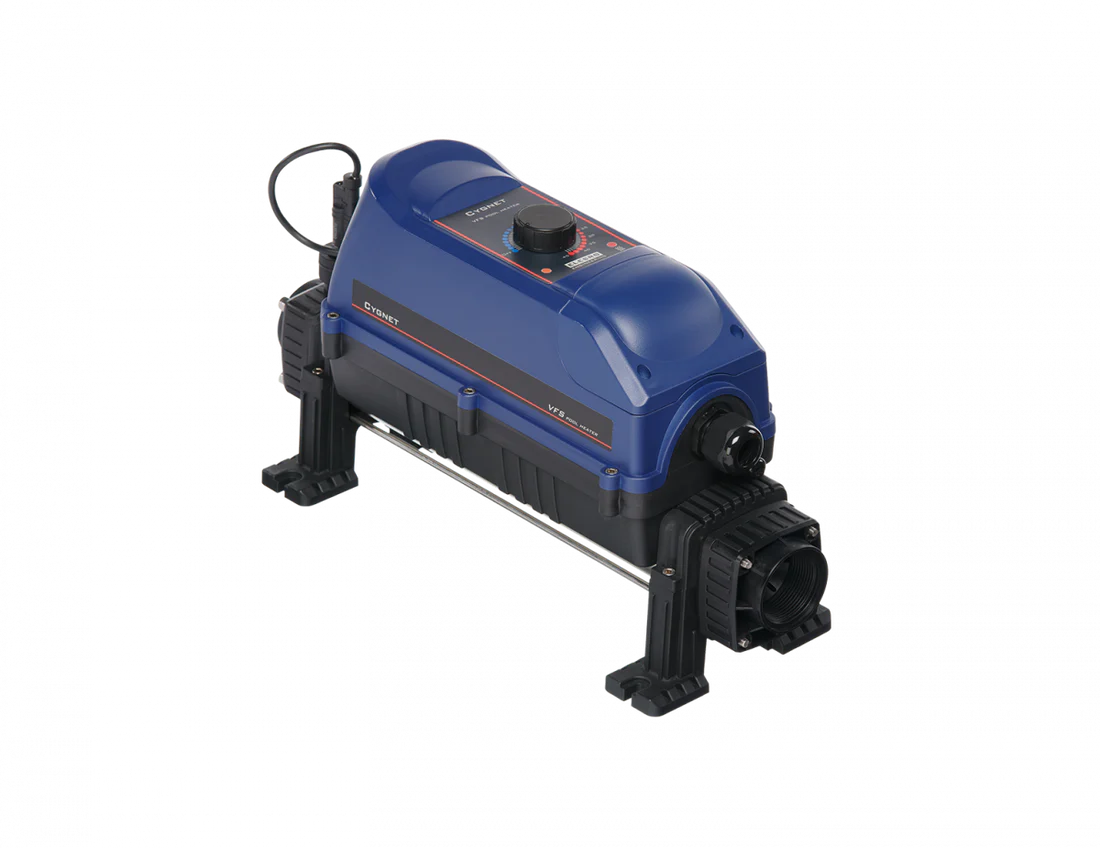

Elecro Cygnet EVO2 1KW Analog Heater (All Titanium)

A fully titanium heater by Elecro, the Evolution 2, is the latest and upgraded version of the original Evolution. Boasting 100% efficiency, safety, and above all, reliability, this compact and robust unit will effortlessly heat your pool or spa to your desired temperature.

Features & Benefits:

Ten power options ranging from 1-kW to 24-kW

Easy installation, fully equipped and pre-wired

Robust, durable construction

Ultra-reliable flow switch allows safe operation

Temperature thermostat and overheating sensor

Compact, durable design

Analogue control with 1.2˚C differential or digital control with 0.5˚C differential and selectable multi-lingual display

Titanium flow tube and titanium heating element

Can be floor or vertically wall mounted

Vortex, long life, stay clean heating element technology

100% efficiency throughout the product life

Silent operation

Technical Data

Power Supply

Single phase or three phase

Flow Requirements:

Minimum flow: 1-kW to 6-kW, 1m³/h

Minimum flow: 9-kW to 24-kW, 4m³/h

Maximum flow: 17m³/h

Heating Elements: Grade 1 titanium

Flow Tube: Grade 1 titanium

Control Thermostat: Analogoue: 0>45°C (1.2°C differential), Digital: 0 > 45°C (0.5°C differential)

Safety Thermal Cut Out: 60°C (manual reset)

Flow Switch: Gold tipped reed switch with titanium fulcrum pin

Contactor: Siemens 3RT2023 OR 3RT2027

Seals: High temperature special formula EPDM ferrules, TPE end fitting gaskets

Water Connection: 1.5” BSP female thread supplied with 1½” / 50mm stepped ABS unions for rigid pipe and 1½” / 1¼” stepped hose tails for flexible pipe

Ingress Protection Rating: IP44

Frequency: 50/60 Hz

Working Pressure: 4 bar maximum

Mounting: Floor or wall mounting
