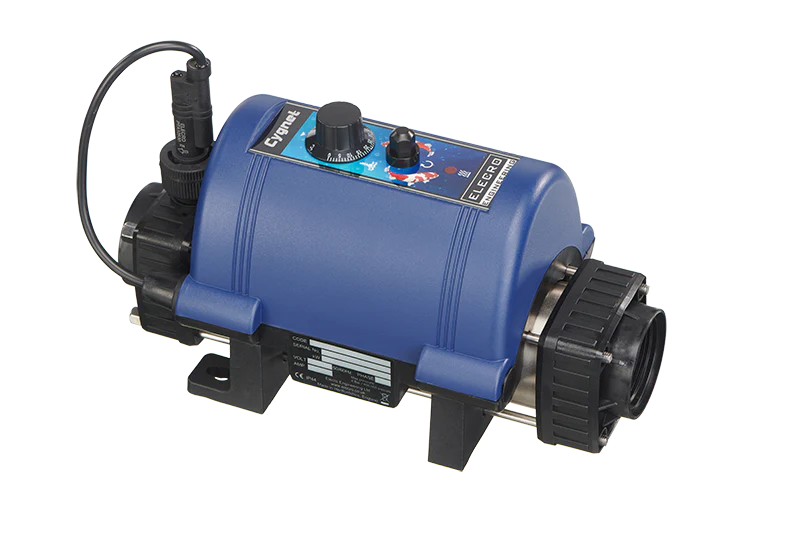

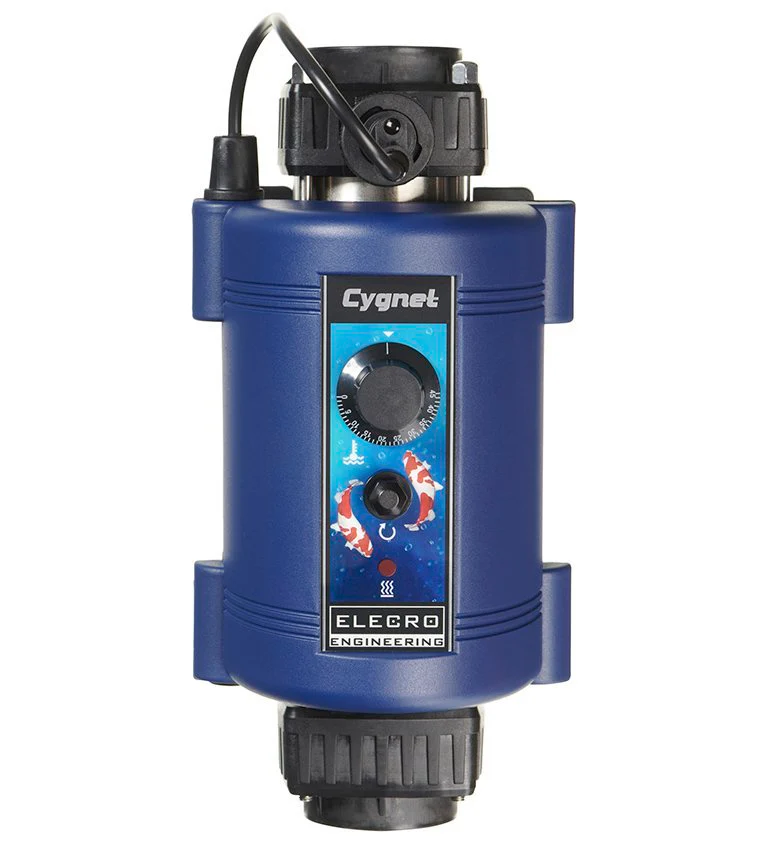

Elecro Nano Cygnet 3KW Analogue Heater (Titanium Element)

Specifically designed to ensure maximum safety, reliability and efficiency, the Cygnet Aquatic heater is user-friendly and offers “plug & play” installation for the 1-kW to 4-kW models. The thermostat dial gives you control over the desired pond temperature, while the thermal cut-out protects against over-heating.

Features & Benefits:

Various power options ranging from 1-kW to 4-kW

Easy installation, fully equipped and pre-wired

Robust, durable construction

Ultra-reliable flow switch allows safe operation

Supplied with temperature thermostat and overheating sensor

Compact, durable design

Analogue control with 1.2°C differential

Titanium flow tube and titanium heating element

Can be floor or vertically wall mounted

Vortex, long life, stay clean heating element technology

100% efficiency throughout the product life

Silent operation

Technical Data

Power Supply

220-240V single phase

Flow Requirements:

Minimum flow: 1m³/h

Maximum flow: 17m³/h

Heating Element: Grade 1 titanium

Flow Tube: Grade 1 titanium

Control Thermostat: Analogue: 0>45°C (1.2°C differential)

Safety Thermal Cut Out: 60°C (manual reset)

Flow Switch: Gold tipped reed switch with titanium fulcrum pin

Relay: Surface mount DPDT Finder 66.82.8.230.0000

Seals: High temperature special formula EPDM ferrules, TPE end fitting gaskets

Water Connections: 1.5″ BSP female thread supplied with 1½” / 50mm stepped ABS unions for rigid pipe and 1½” / 1¼” stepped hose tails for flexible pipe

Ingress Protection Rating: IP44

Frequency: 50/60 Hz

Working Pressure: 4 bar maximum

Mounting: Floor or wall mounting
